The xtra ST line brings production-ready performance with dual-frequency flexibility for everything from tough polishing pastes to fine-detail cleaning. Designed for continuous use with fast serviceability.
25 kHz for coarse cleaning and 45 kHz for fine cleaning. Stubborn contaminants like polishing pastes are easily removed at 25 kHz. Fine cleaning is carried out at 45 kHz.
Evenly distributes cleaning power throughout the solution for consistent results.
Adds bursts of ultrasonic power for intensive cleaning and degassing of tough contaminants.
Combines Sweep and Pulse modes for optimum cleaning results on a wide range of parts.

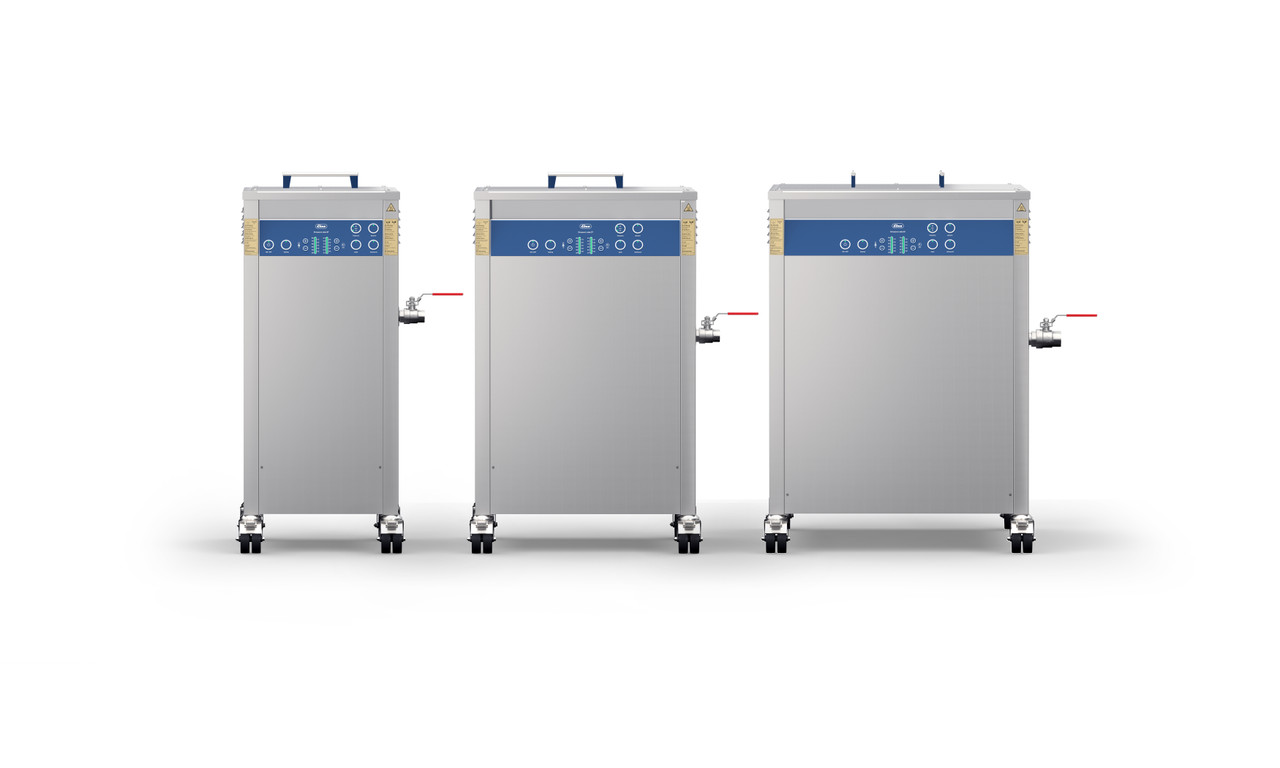

Robust stainless steel tanks with long service life. Wheel-mounted for portability. Designed for continuous operation under the highest operational demands in production environments.
Timer adjustable from 1 to 30 minutes or continuous operation. Automatic shut-off at 90°C or after 12 hours of continuous operation for safety.
Temperature adjustable from 30°C to 80°C with automatic start-up.
All models feature drains with stainless steel ball valves for easy maintenance and cleaning solution changes.
Control panel/generator assembly can be quickly removed and replaced in-house. Intelligent generators adjust automatically to transducers. Made in Germany with UL, CSA, ISO9001, and ISO13485 certifications.
Choose xtra ST when your parts are larger, your throughput is higher, or you need floor-standing tanks designed for production-duty cleaning.
Measure the largest part you need to clean, then compare those dimensions to the basket and tank dimensions. If you run multiple parts per cycle, size up for spacing and consistent cavitation.
Yes. Dual-frequency operation plus Sweep, Pulse, and Dynamic modes are designed for difficult industrial soils while maintaining repeatable cleaning quality.
For high-volume production cleaning, filtration is strongly recommended to extend bath life, reduce downtime, and stabilize cleaning results.
Use ultrasonic-safe chemistry matched to your soil and substrate. Verify concentration and temperature guidance before production runs.
No. The Elmasonic xtra ST models will automatically shut off after 12 hours of continuous operation. This protects the tanks and any parts left in the tank. The unit will also shut down for safety if the temperature reaches 90°C.
Yes, the xtra ST models have UL and CSA certification.
Tell us your part dimensions, throughput, and cleaning requirements. We'll confirm whether an xtra ST is the right scale for your operation.
