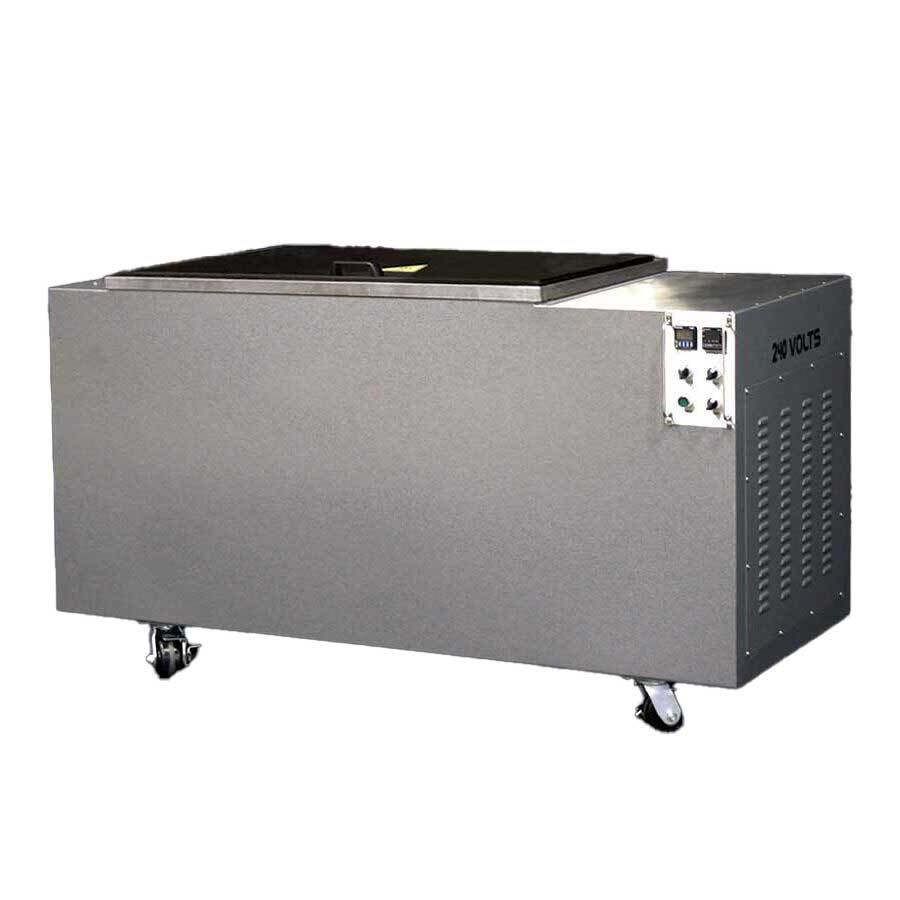

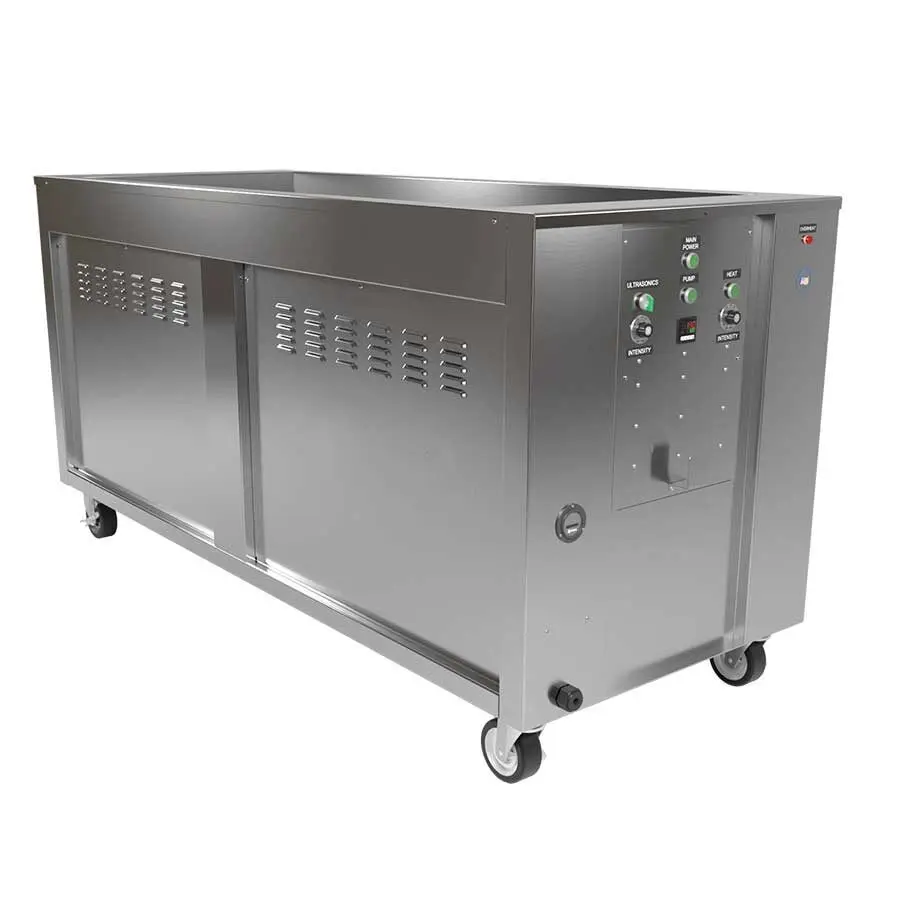

Shiraclean high-capacity ultrasonic cleaners are engineered for demanding industrial and laboratory applications, including removal of chips and coolant from machined parts, solder flux removal, injection-mold cleaning, and 3-D mold support removal.
Shiraclean high-capacity ultrasonic cleaners are engineered for demanding industrial and laboratory applications, including removal of chips and coolant from machined parts, solder flux removal, injection-mold cleaning, and 3-D mold support removal. Each system combines powerful 40 kHz sweep-frequency ultrasound with integrated filtration to keep the bath clean and productive.

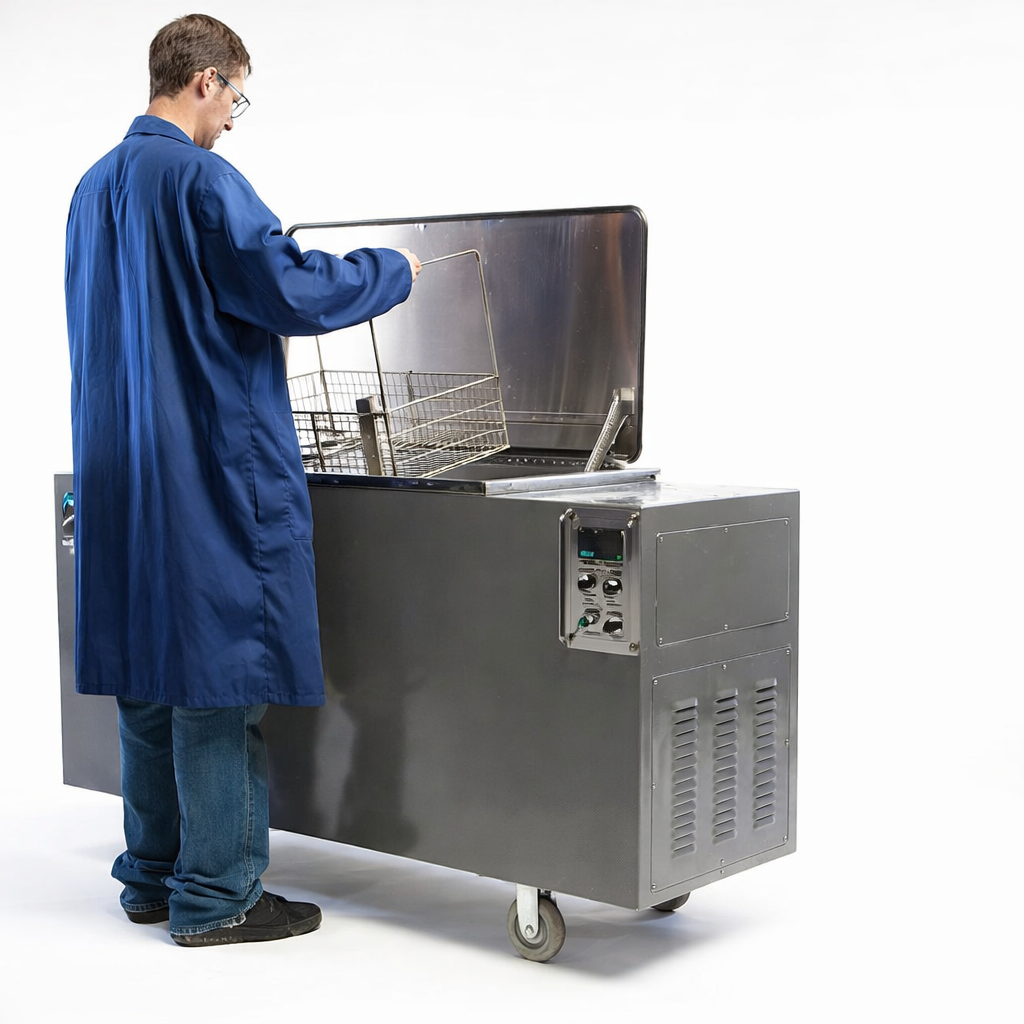

Shiraclean ultrasonic cleaners handle large, heavy, and complex parts in machine shops and labs, cutting labor time while improving cleaning consistency.
Each tank uses 40 kHz Sweep-frequency ultrasound to deliver uniform cleaning performance throughout the bath and protect delicate parts from hot spots.
Solution filtration (particle and carbon oil filters) plus an optional skimming weir and spray bar remove surface oils and particulates, extending bath life and improving results.
Digital temperature control, low liquid-level sensor, and illuminated control panel support repeatable, safe operation shift after shift.
Fully insulated stainless steel tank with Hammertone powder-coat exterior, stainless work area and plumbing, and heavy-duty casters for portability.
All Shiraclean units include a two-year parts warranty from your purchase date.
| Model | Series | Vol (gal) |
Dimensions (LxWxH in.) |
Filtration | Weir & Spray Bar | Cover | Bottom Rack |
|---|---|---|---|---|---|---|---|
| Shiraclean TVT-025G | TVT | 25 | 18 x 18 x 14 | Dual cartridge | Standard | Hinged | Standard |
| Shiraclean TVT-033G | TVT | 33 | 24 x 18 x 14 | Dual cartridge | Standard | Hinged | Standard |
| Shiraclean TVT-045G | TVT | 45 | 34 x 18 x 14 | Dual cartridge | Standard | Hinged | Standard |
| Shiraclean TVT-086G | TVT | 86 | 36 x 24 x 20 | Dual cartridge | Standard | Hinged | Standard |
| Shiraclean TVT-110G | TVT | 110 | 48 x 26 x 20 | Dual cartridge | Standard | Hinged | Standard |
| Shiraclean TVU-135 | TVU | 135 | 54 x 24 x 24 | Single cartridge | Optional | Lift-off | Optional |
| Shiraclean TVU-204 | TVU | 204 | 70 x 28 x 24 | Single cartridge | Optional | Lift-off | Optional |
Shiraclean systems combine 40 kHz sweep-frequency ultrasound with integrated dual-cartridge filtration, skimming weir, and spray bar to support longer bath life and more consistent cleaning throughput.
Typical applications include machined parts cleaning, solder flux removal, mold support removal, and other industrial workflows where high-capacity, repeatable cleaning is required.
Start with your largest part dimensions and required throughput, then match tank size and basket dimensions, if a basket will be used. Large parts may rest on a bottom rack instead of inside a basket.
Tell us your largest part dimensions, throughput, and contamination type. We'll match the right tank size, basket, and filtration configuration.
