Strong safe cleaning and mixing; easy to operate

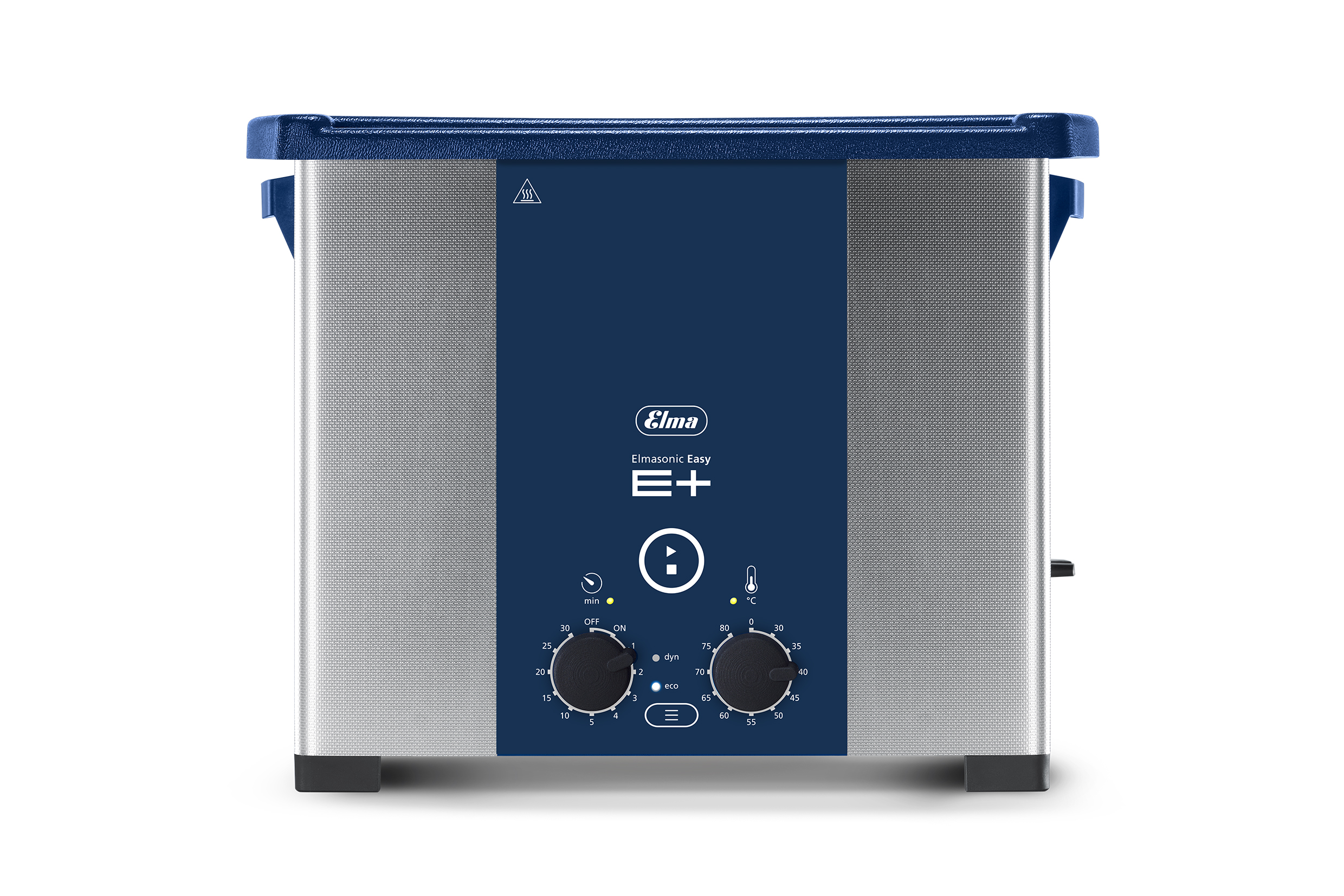

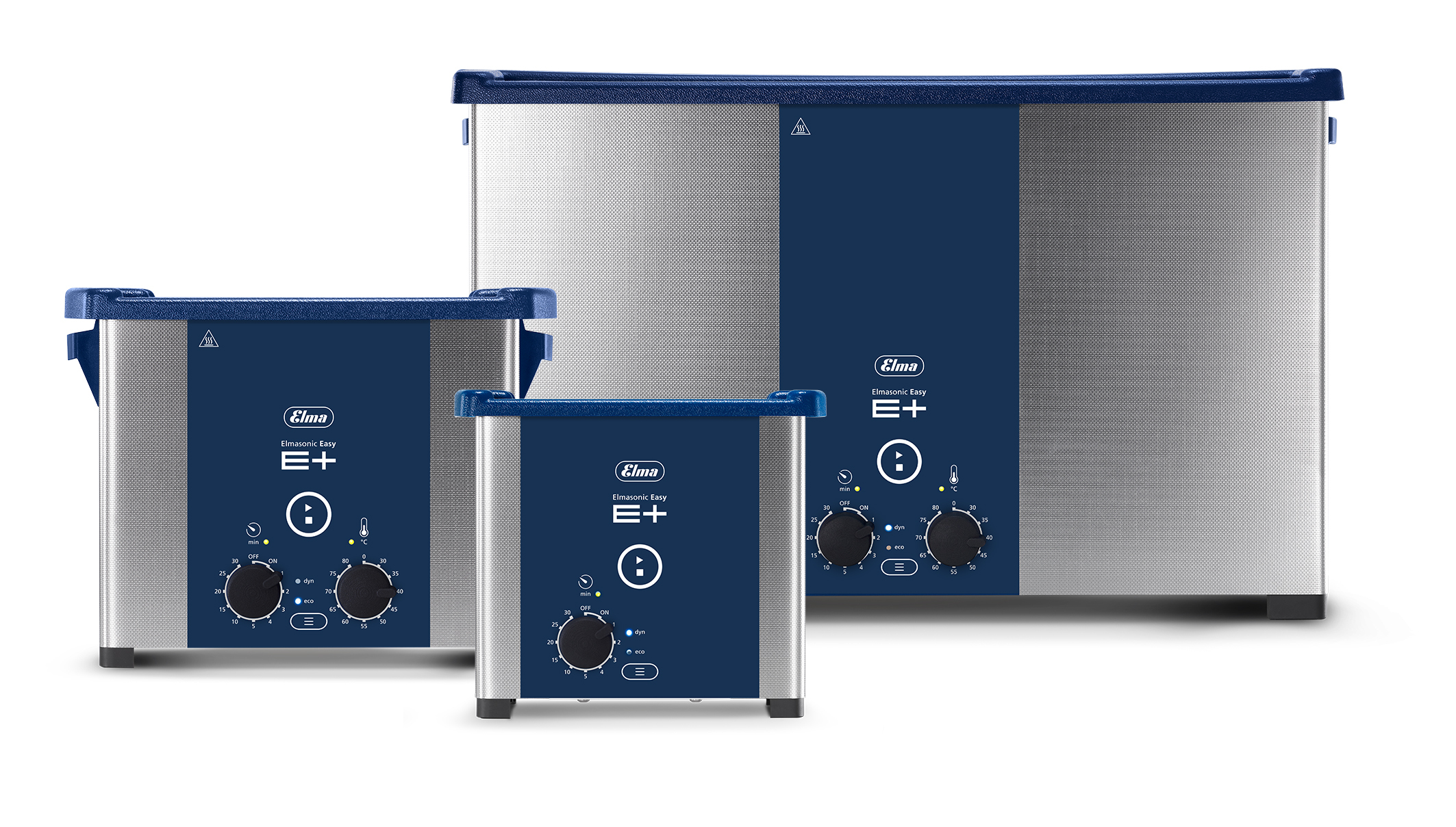

Choose the easily operated Elmasonic E Plus for fast and thorough cleaning of a wide range of parts and instruments. Dynamic mode combines sweep frequency for uniform cleaning action with bursts of power to remove stubborn contaminants, quickly degas fresh cleaning solutions, or prepare lab samples. Eco mode offers quiet gentle cleaning at reduced power. This economical product line is manufactured in Germany to the highest quality standards and is backed by a 2-year warranty.
Combines sweep for cleaning uniformity with pulse to remove stubborn contaminants, degas fresh solutions, or for mixing and sample prep in the lab.
The microprocessor-controlled generator maintains constant ultrasonic power, sensing and adjusting for light or heavy loads in the tank. Ensures reproducible performance from run to run.
Select the cleaning time from 1-30 minutes. Or set the unit for continuous operation. In this mode you can stop the cleaning manually.
Eco Mode offers reduced-power gentle cleaning, quiet operation, and extends tank lifetime.
Set the cleaning temperature from 30°C to 80°C in increments of 5°C. (EP10, EP20, and EP30 models do not have heating)
E Plus line models from EP60H to EP300H have a rear drain with a valve for easy emptying of the tank. The valve is located on the side of the tank for easy access.
| Model | Tank Volume (gal) | Internal Dimensions (L x W x H in.) |
|---|---|---|
| EP10 | 0.25 | 7.5 x 3.3 x 2.4 |
| EP10H | 0.25 | 7.5 x 3.3 x 2.4 |
| EP20 | 0.5 | 5.9 x 5.4 x 3.9 |
| EP20H | 0.5 | 5.9 x 5.4 x 3.9 |
| EP30 | 0.75 | 9.4 x 5.4 x 3.9 |
| EP30H | 0.75 | 9.4 x 5.4 x 3.9 |
| EP40H | 1.0 | 9.4 x 5.4 x 5.9 |
| EP60H | 1.5 | 11.8 x 5.9 x 5.9 |
| EP100H | 2.5 | 11.8 x 9.4 x 5.9 |
| EP120H | 3.5 | 11.8 x 9.4 x 7.9 |
| EP180H | 5.0 | 12.9 x 11.8 x 7.9 |
| EP300H | 7.5 | 19.9 x 11.8 x 7.9 |
Choose E Plus for reliable daily cleaning when you need intuitive controls, repeatable results, and strong long-term value in routine lab and production workflows.
Yes. Use correct basket spacing, and validated chemistry to clean delicate parts. Use Eco mode for extremely sensitive parts.
All heated models include temperature control. Drain valves are available on larger units; review each model page for exact drain configuration.
Use ultrasonic-safe detergents matched to your soil and substrate. Avoid incompatible chemistry and follow concentration and temperature guidance from the solution supplier. Never use a flammable solvent.
Match your largest part to basket dimensions and required throughput. If you share part dimensions and batch targets, we can recommend the best-fit model.
No. The Elmasonic E Plus models will automatically shut off after 6 hours of continuous operation. This protects the tanks and any parts left in the tank. The unit will also shut down for safety if the temperature reaches 90°C.
Yes, the Elmasonic E Plus models have cTUVus certification which is equivalent to UL and CSA.
